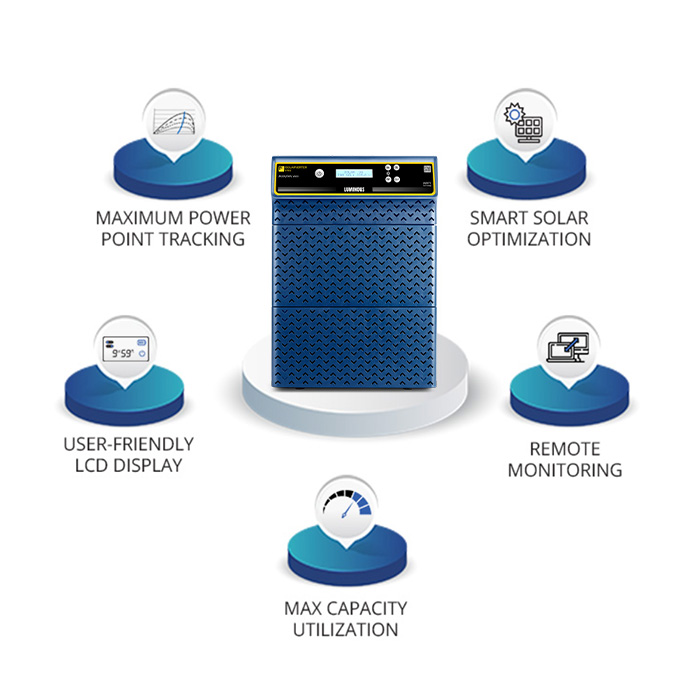

SOLARVERTER PRO 3KVA eco
₹ 60,000.00(Inclusive of all taxes)
For more details, visit the Warranty section under Specifications.
Solarverter PRO range from Luminous allows smart management of Solar Power, Grid Supply and Battery to deliver uninterrupted power for all electrical applications. It is designed for high performance against the typically tough Indian grid conditions.
Enter pincode to see product availability
Add a pincode
Overview
• Rated AC power - 230V (single phase)
• Max Supported Panel Power - 3000 Wp, Input Voltage Range (Vmp) – 60V-120V
• Charge Controller - MPPT, Input Voltage Range (Voc)- 75V-150V
• Nominal Battery Bank Voltage - 36V
• BIS certified solar inverter
• In-built TDR for loads with heavy in-rush current
• Inbuilt MPPT charge controller to maximize solar generation from solar panels
• Inbuilt isolation transformer to protect from grid surges and noise
• User selectable source priority: Choose source priority from solar, battery and grid
• User friendly Informative LCD Display
• MCB protection against short circuit protection
• Pure sine wave output for better performance & safety of connected loads
• Safe for your home with comprehensive protection features such as short-circuit, reverse polarity, battery overload, etc.
Specifications
What's in the box?
1N Inverter
Dimensions (in cms)
43.2*42.9*30.0 CM
VA Rating
N/A
No. of Batteries Supported
3
Net Weight(In Kg)
31.5 kg
Maximum Panel Capacity (W)
3KVA
Nominal Battery bank voltage
36V
Application Area
• Banks • Schools/Colleges • Warehouses/Factories • Showrooms • Restaurants
Product Category
Solarverter PRO (2 KVA to 5 KVA)
Input Voltage Range
75V-150V
Buying Guide
NA
Features
• Rated AC power - 230V (single phase) • Max Supported Panel Power - 3000 Wp, Input Voltage Range (Vmp) – 60V-120V • Charge Controller - MPPT, Input Voltage Range (Voc)- 75V-150V • Nominal Battery Bank Voltage - 36V • BIS certified solar inverter • In-built TDR for loads with heavy in-rush current • Inbuilt MPPT charge controller to maximize solar generation from solar panels • Inbuilt isolation transformer to protect from grid surges and noise • User selectable source priority: Choose source priority from solar, battery and grid • User friendly Informative LCD Display • MCB protection against short circuit protection • Pure sine wave output for better performance & safety of connected loads • Safe for your home with comprehensive protection features such as short-circuit, reverse polarity, battery overload, etc.
Warranty
24 months
Manufacturer information
Model Name
SOLARVERTER PRO 3KVA eco
Country of Origin
India
Manufactured By
India
Marketed By
N/A
Customer Care Details
Contact Customer Care Executive: Luminous Power Technologies Private Limited Plot No 150, Sector- 44, Gurugram, Haryana -122003 Ph.: 99999 33039 Email Id: Care@luminousindia.com Website: www.luminousindia.com
Shipping and Returns
N/A
Overview
Specifications
Manufacturer information
• Rated AC power - 230V (single phase)
• Max Supported Panel Power - 3000 Wp, Input Voltage Range (Vmp) – 60V-120V
• Charge Controller - MPPT, Input Voltage Range (Voc)- 75V-150V
• Nominal Battery Bank Voltage - 36V
• BIS certified solar inverter
• In-built TDR for loads with heavy in-rush current
• Inbuilt MPPT charge controller to maximize solar generation from solar panels
• Inbuilt isolation transformer to protect from grid surges and noise
• User selectable source priority: Choose source priority from solar, battery and grid
• User friendly Informative LCD Display
• MCB protection against short circuit protection
• Pure sine wave output for better performance & safety of connected loads
• Safe for your home with comprehensive protection features such as short-circuit, reverse polarity, battery overload, etc.
