Solar Hybrid Inverter - TX 5 KVA
₹ 110,000.00(Inclusive of all taxes)
For more details, visit the Warranty section under Specifications.
MPPT Technology:
MPPT charge controllers are more efficient compared to PWM charge controllers as they convert 30% more power from solar panels.

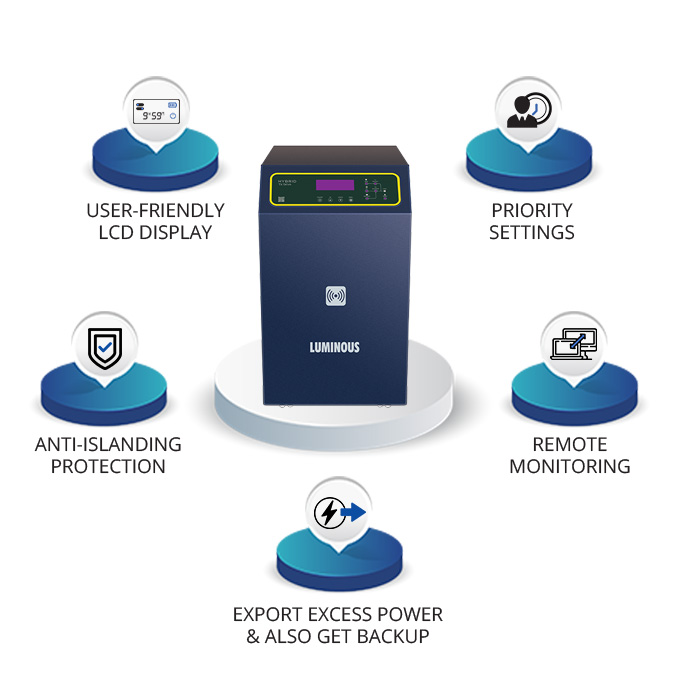

Operating Range - 180V-270V (single phase) Max Supported Panel Power - 4000 Wp, Input Voltage Range (Vmp) – 65V-130V Charge Controller - MPPT, Input Voltage Range (Voc)- 65V-165V Nominal Battery Bank Voltage - 48V BIS certified solar hybrid inverter Real time remote monitoring Anti-islanding protection to ensure safety of line workers Inbuilt MPPT charge controller to maximize solar generation from solar panels Inbuilt isolation transformer to protect from grid surges and noise User selectable source priority: Choose source priority among SBG, SGB, Solar Only and Grid Feed mode User friendly Informative LCD Display along with LED indications In-built zero export function Pure sine wave output for better performance & safety of connected loads Safe for your home with comprehensive protection features such as short-circuit, reverse polarity, battery overload, etc.
Enter pincode to see product availability
Add a pincode
Overview
Hybrid inverter range from Luminous is a combination of an on-grid and off-grid solar system which makes this inverter more versatile than other solar inverters helping in lowering your electricity bills and protecting from power outages. It can easily work without grid, store electricity in batteries as well as export excess electricity generated to the grid. Priority Setting Allows users flexibility to set priority settings based on their requirement of maximum energy saving, power backup only during power cut and power backup through battery in areas where grid supply is not available.
Specifications
What's in the box?
1N Inverter, 1N Manual
Dimensions (in cms)
35.0*63.5*58.9 CM
VA Rating
5KVA
No. of Batteries Supported
4
Net Weight(In Kg)
Maximum Panel Capacity (W)
4000Wp
Nominal Battery bank voltage
48V
Application Area
Commercial Applications, Homes and Small Shops
Product Category
Hybrid
Input Voltage Range
65V-165V
Buying Guide
Features
Maximum Power Point Tracking User selectable priority settings Real time remote monitoring Export excess power generated & also get backup In-built Zero Export Function
Warranty
24 months
Manufacturer information
Model Name
Hybrid Inverter TX 5 KVA
Country of Origin
India
Manufactured By
(A) Luminous Power Technologies Pvt. Ltd Village-Malpur, Baddi, District-Solan, Himachal Pradesh-173205 (B) Luminous Power Technologies Pvt. Ltd Kh No. 957, 958, 960, 961 & 975, Village-Dev Nagar, PO-Gagret, Tehsil-Amb, Himachal Pradesh-177208
Marketed By
(A) Luminous Power Technologies Pvt. Ltd Village-Malpur, Baddi, District-Solan, Himachal Pradesh-173205 (B) Luminous Power Technologies Pvt. Ltd Kh No. 957, 958, 960, 961 & 975, Village-Dev Nagar, PO-Gagret, Tehsil-Amb, Himachal Pradesh-177201
Customer Care Details
Contact Customer Care Executive: Luminous Power Technologies Private Limited Plot No 150, Sector- 44, Gurugram, Haryana -122003 Ph.: 99999 33039 Email Id: Care@luminousindia.com Website: www.luminousindia.com
Shipping and Returns
Overview
Specifications
Manufacturer information
Hybrid inverter range from Luminous is a combination of an on-grid and off-grid solar system which makes this inverter more versatile than other solar inverters helping in lowering your electricity bills and protecting from power outages. It can easily work without grid, store electricity in batteries as well as export excess electricity generated to the grid. Priority Setting Allows users flexibility to set priority settings based on their requirement of maximum energy saving, power backup only during power cut and power backup through battery in areas where grid supply is not available.
