SOLAR NXE 5KVA
₹ 60,000.00(Inclusive of all taxes)
For more details, visit the Warranty section under Specifications.
Solarverter range from Luminous allows smart management of Solar Power, Grid Supply and Battery to deliver uninterrupted power for all electrical applications. Designed for high performance against the typically tough Indian grid conditions.

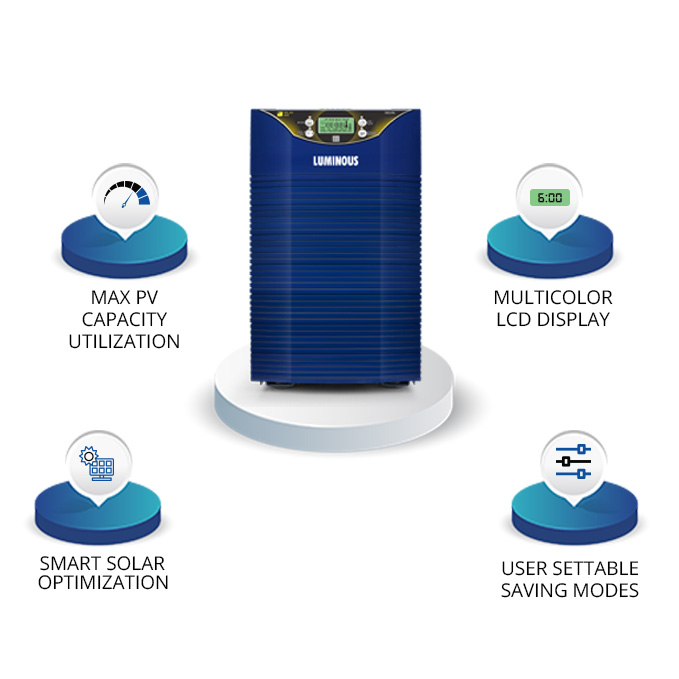

Smart Solar Optimization
Gives priority to solar in both backup and charging mode of operation thereby maximizing solar energy utilization.
User Settable Saving Modes
SL-1 Mode, SL-2 Mode and SL-3 Mode; UPS and Normal Mode
Max Capacity Utilization
Connect Solar Panels more than Solar Inverter’s VA ratings
User Friendly Multicolor LCD Display
Makes it convenient for user to easily monitor various performance parameters
BIS Certified
Solarverter is a BIS certified solar inverter as per IS/IEC standards which is mandatory for all solar inverters
Enter pincode to see product availability
Add a pincode
Overview
- Capacity (KVA): 5KVA
- Max supported panel power: 5400 Wp
- Nominal Battery Bank Voltage: 48V
- User Settable Saving Modes:
- SL-1 Mode, SL-2 Mode and SL-3 Mode
- UPS and Normal Modes
- Max Capacity Utilization: Connect Solar Panels more than Solar Inverter’s VA ratings (5400Wp)
- User friendly Multicolour LCD Display
- MCB protection against short circuit protection
- Inbuilt isolation transformer to protect from grid surges and noise
- Pure sine wave output for better performance & safety of connected loads
- Safe for your home with comprehensive protection features such as short-circuit, reverse polarity, over temperature, etc.
- BIS certified as per IS/IEC standards which is mandatory for all solar inverters
- 24 Months Warranty
Specifications
What's in the box?
1 N Inverter, 1 N Manual
Dimensions (in cms)
43.3*45.8*38.0
VA Rating
5 kVA
No. of Batteries Supported
4
Net Weight(In Kg)
44
Maximum Panel Capacity (W)
5400 Wp
Nominal Battery bank voltage
48 V
Application Area
Commercial Applications, Homes and Small Shops
Product Category
PCU
Input Voltage Range
100V
Buying Guide
Features
- Smart Solar Optimization - User Settable Saving Modes - Max Capacity Utilization - User friendly Multicolour LCD display - BIS Certified
Warranty
24 months
Manufacturer information
Model Name
SOLAR NXE 5KVA
Country of Origin
India
Manufactured By
Marketed By
Luminous Power Technologies Private Limited Plot No. 150, Sector-44, Gurugram-122003, Haryana. Ph.: +91-124-4776700
Customer Care Details
Contact Customer Care Executive: Luminous Power Technologies Private Limited Plot No 150, Sector- 44, Gurugram, Haryana -122003 Ph.: 99999 33039 Email Id: Care@luminousindia.com Website: www.luminousindia.com
Shipping and Returns
Overview
Specifications
Manufacturer information
- Capacity (KVA): 5KVA
- Max supported panel power: 5400 Wp
- Nominal Battery Bank Voltage: 48V
- User Settable Saving Modes:
- SL-1 Mode, SL-2 Mode and SL-3 Mode
- UPS and Normal Modes
- Max Capacity Utilization: Connect Solar Panels more than Solar Inverter’s VA ratings (5400Wp)
- User friendly Multicolour LCD Display
- MCB protection against short circuit protection
- Inbuilt isolation transformer to protect from grid surges and noise
- Pure sine wave output for better performance & safety of connected loads
- Safe for your home with comprehensive protection features such as short-circuit, reverse polarity, over temperature, etc.
- BIS certified as per IS/IEC standards which is mandatory for all solar inverters
- 24 Months Warranty
