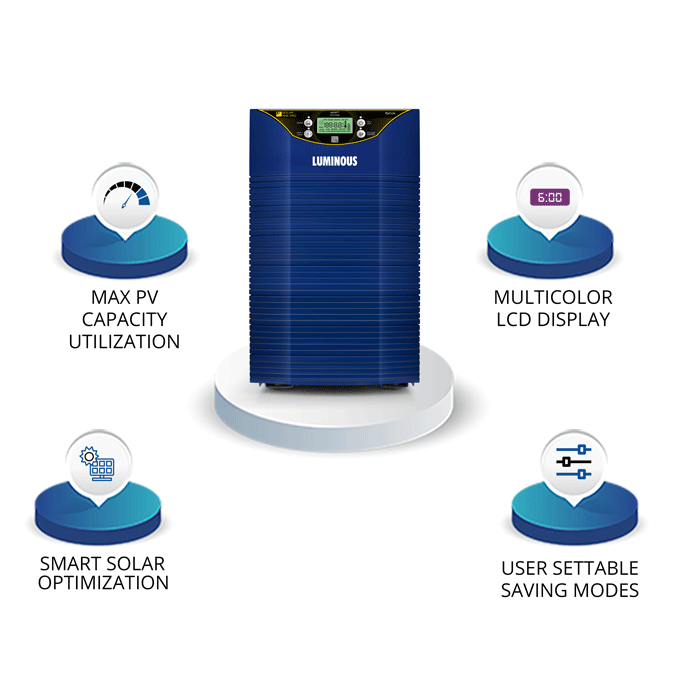

SOLAR NXE PRO 15KVA
₹ 299,550.00(Inclusive of all taxes)
For more details, visit the Warranty section under Specifications.
Solar NXE PRO range from Luminous comes with in-built MPPT technology, that helps in converting 30% more power from solar panels as compared to PWM solar inverters.
MPPT Technology
MPPT charge controllers are more efficient compared to PWM charge controllers as they convert 30% more power from solar panels
Smart Solar Optimization
Gives priority to solar in both backup and charging mode of operation thereby maximizing solar energy utilization
User Settable Saving Modes
SL-1 Mode, SL-2 Mode, SL-3 Mode and SL-4 Mode; UPS and Normal Mode
Max Capacity Utilization
Connect Solar Panels more than Solar Inverter’s VA ratings
User Friendly Multicolor LCD Display
Makes it convenient for user to easily monitor various performance parameters
Enter pincode to see product availability
Add a pincode
Overview
- Capacity (KVA): 15KVA
- Max supported panel power: 16500 Wp
- Nominal Battery Bank Voltage: 240V
- User Settable Saving Modes:
- SL-1 Mode, SL-2 Mode, SL-3 and SL-4 Mode
- UPS and Normal Modes
- Max Capacity Utilization: Connect Solar Panels more than Solar Inverter’s VA ratings (16500Wp)
- User friendly Multicolour LCD Display
- MCB protection against short circuit protection
- Inbuilt isolation transformer to protect from grid surges and noise
- Pure sine wave output for better performance & safety of connected loads
- Safe for your home with comprehensive protection features such as short-circuit, reverse polarity, over temperature, etc.
- 24 Months Warranty
Specifications
What's in the box?
1 N Inverter, 1 N Manual
Dimensions (in cms)
27.6*50.9*64.2
VA Rating
15KVA
No. of Batteries Supported
20
Net Weight(In Kg)
99.9
Maximum Panel Capacity (W)
16500Wp
Nominal Battery bank voltage
240V
Application Area
Commercial Applications, Large Residences
Product Category
PCU
Input Voltage Range
550V
Buying Guide
Features
- Smart Solar Optimization - User Settable Saving Modes - Max Capacity Utilization - User friendly Multicolor LCD display
Warranty
24 months
Manufacturer information
Model Name
SOLAR NXE PRO 15KVA
Country of Origin
India
Manufactured By
Marketed By
Luminous Power Technologies Private Limited Plot No. 150, Sector-44, Gurugram-122003, Haryana. Ph.: +91-124-4776700
Customer Care Details
Contact Customer Care Executive: Luminous Power Technologies Private Limited Plot No 150, Sector- 44, Gurugram, Haryana -122003 Ph.: 1800 103 3039 Email Id: Care@luminousindia.com Website: www.luminousindia.com
Shipping and Returns
Overview
Specifications
Manufacturer information
- Capacity (KVA): 15KVA
- Max supported panel power: 16500 Wp
- Nominal Battery Bank Voltage: 240V
- User Settable Saving Modes:
- SL-1 Mode, SL-2 Mode, SL-3 and SL-4 Mode
- UPS and Normal Modes
- Max Capacity Utilization: Connect Solar Panels more than Solar Inverter’s VA ratings (16500Wp)
- User friendly Multicolour LCD Display
- MCB protection against short circuit protection
- Inbuilt isolation transformer to protect from grid surges and noise
- Pure sine wave output for better performance & safety of connected loads
- Safe for your home with comprehensive protection features such as short-circuit, reverse polarity, over temperature, etc.
- 24 Months Warranty
