Solarverter PRO PCU - 5KVA / 48V
₹ 100,000.00(Inclusive of all taxes)
For more details, visit the Warranty section under Specifications.
MPPT Technology:
MPPT charge controllers are more efficient compared to PWM charge controllers as they convert 30% more power from solar panels.
Solarverter PRO range from Luminous allows smart management of Solar Power, Grid Supply and Battery to deliver uninterrupted power for all electrical applications. Designed for high performance against the typically tough Indian grid conditions, Solarverter PRO is available from 2 KVA to 10 KVA.
Enter pincode to see product availability
Add a pincode
Overview
Luminous Solarverter PRO PCU comes with following features -
- Rated AC power - 230V (single phase)
- Max Supported Panel Power - 5000 Wp, Input Voltage Range (Vmp) – 110V-180V
- Charge Controller - MPPT, Input Voltage Range (Voc)- 130V-220V
- Nominal Battery Bank Voltage - 48V
- BIS certified solar inverter
- In-built TDR for loads with heavy in-rush current
- Inbuilt MPPT charge controller to maximize solar generation from solar panels
- Inbuilt isolation transformer to protect from grid surges and noise
- User selectable source priority: Choose source priority from solar, battery and grid
- User friendly Informative LCD Display
- MCB protection against short circuit protection
- Pure sine wave output for better performance & safety of connected loads
- Safe for your home with comprehensive protection features such as short-circuit, reverse polarity, battery overload, etc.
Specifications
What's in the box?
1 N Inverter, 1 N Manual
Dimensions (in cms)
30.0*48.4*51.1 CM
VA Rating
5 KVA
No. of Batteries Supported
4
Net Weight(In Kg)
54 Kg
Maximum Panel Capacity (W)
5000 Wp
Nominal Battery bank voltage
48 V
Application Area
Product Category
PCU
Input Voltage Range
130 V-220 V
Buying Guide
Features

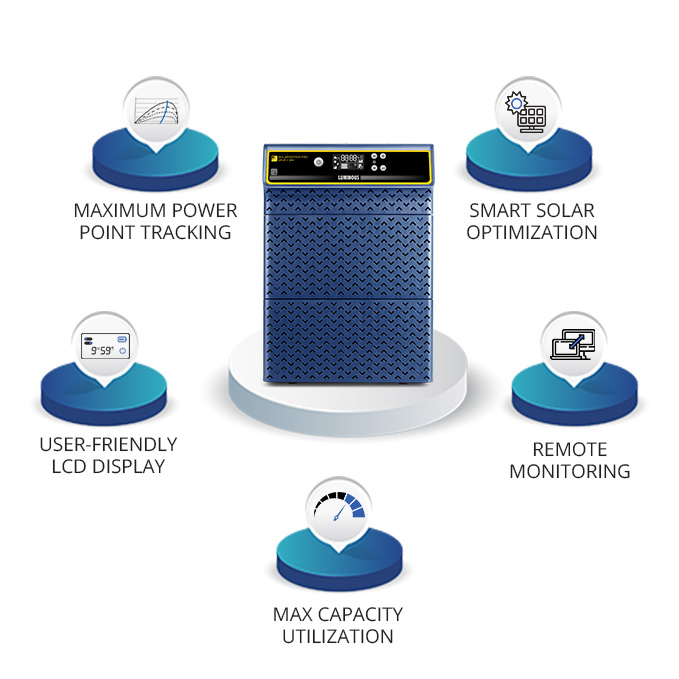

- Smart Solar Optimization - Maximum Power Point Tracking - User friendly LCD display
Warranty
24 Months
Manufacturer information
Model Name
SOLARVERTER PRO 5KVA
Country of Origin
India
Manufactured By
(A) Luminous Power Technologies Pvt. Ltd Village-Malpur, Baddi, District-Solan, Himachal Pradesh-173205 (B) Luminous Power Technologies Pvt. Ltd Kh No. 957, 958, 960, 961 & 975, Village-Dev Nagar, PO-Gagret, Tehsil-Amb, Himachal Pradesh-177201
Marketed By
Luminous Power Technologies Private Limited Plot No. 150, Sector-44, Gurugram-122003, Haryana. Ph.: +91-124-4776700
Customer Care Details
Contact Customer Care Executive: Luminous Power Technologies Private Limited Plot No 150, Sector- 44, Gurugram, Haryana -122003 Ph.: 99999 33039 Email Id: Care@luminousindia.com Website: www.luminousindia.com
Shipping and Returns
Overview
Specifications
Manufacturer information
Luminous Solarverter PRO PCU comes with following features -
- Rated AC power - 230V (single phase)
- Max Supported Panel Power - 5000 Wp, Input Voltage Range (Vmp) – 110V-180V
- Charge Controller - MPPT, Input Voltage Range (Voc)- 130V-220V
- Nominal Battery Bank Voltage - 48V
- BIS certified solar inverter
- In-built TDR for loads with heavy in-rush current
- Inbuilt MPPT charge controller to maximize solar generation from solar panels
- Inbuilt isolation transformer to protect from grid surges and noise
- User selectable source priority: Choose source priority from solar, battery and grid
- User friendly Informative LCD Display
- MCB protection against short circuit protection
- Pure sine wave output for better performance & safety of connected loads
- Safe for your home with comprehensive protection features such as short-circuit, reverse polarity, battery overload, etc.
